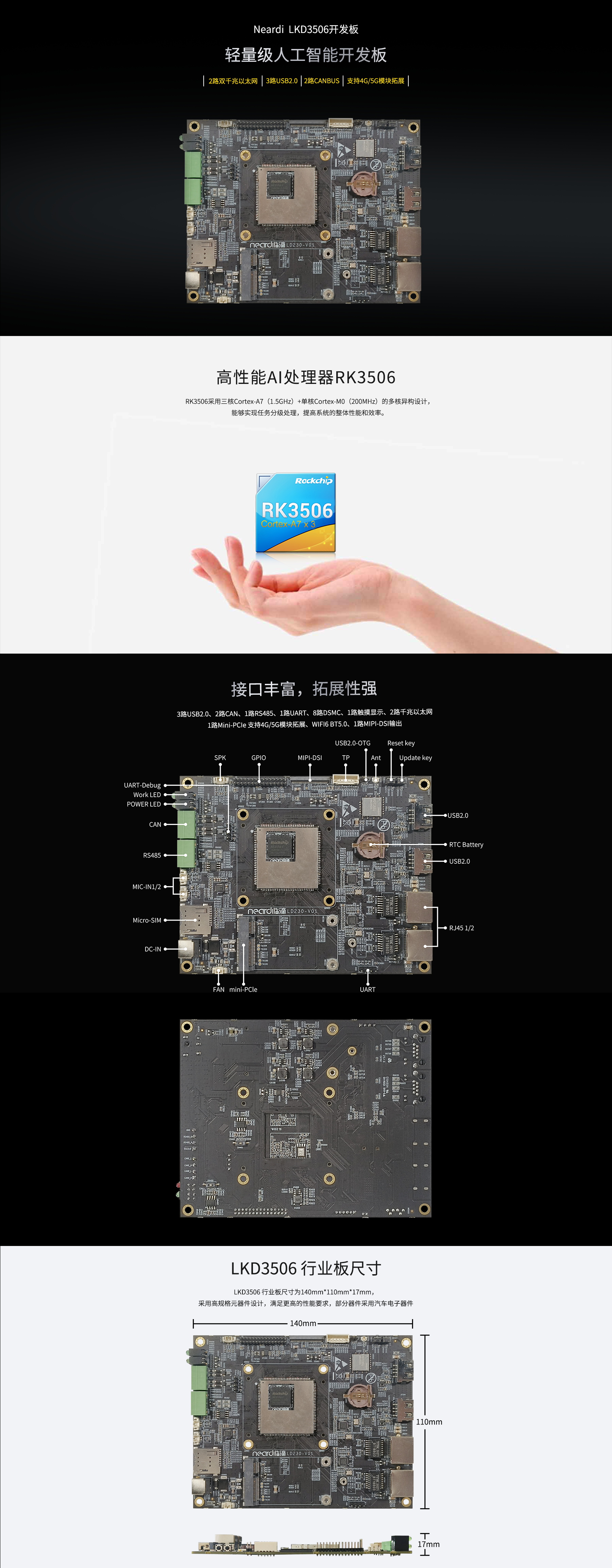

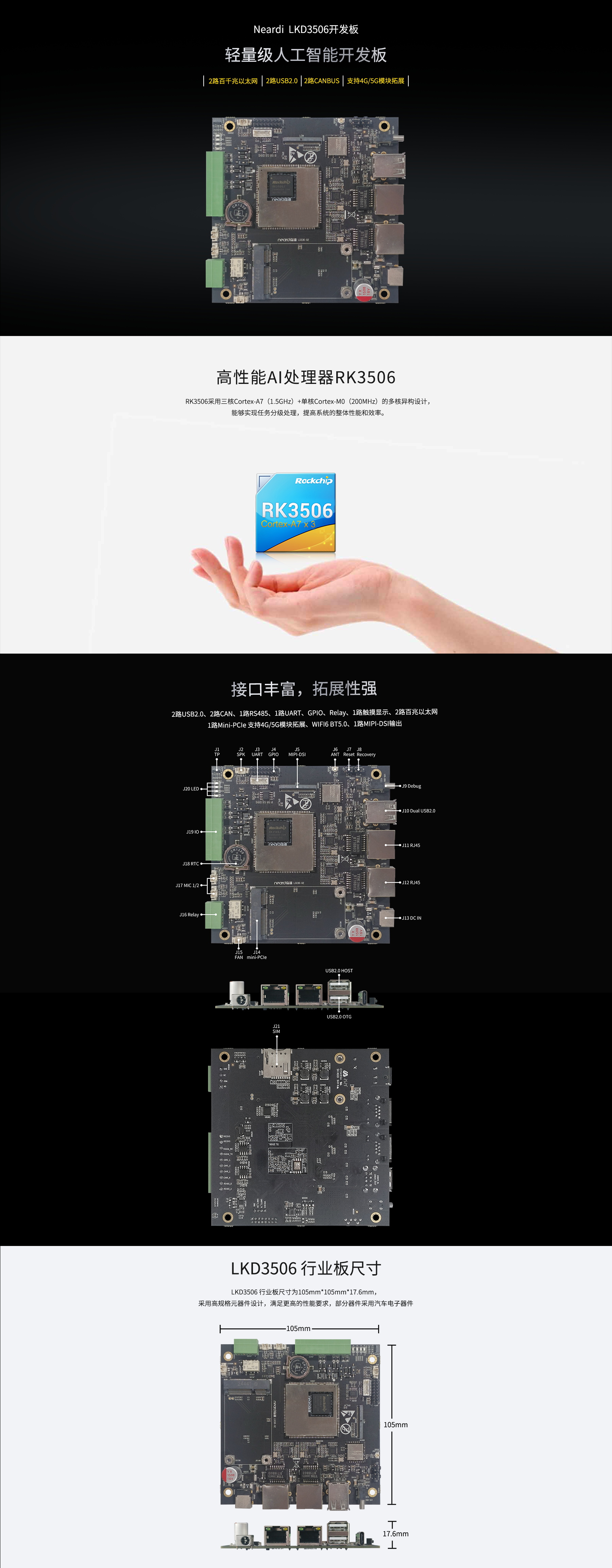

LKD3506
SOC：RK3506
存储组合：256MB+8GB
产品尺寸：140mm(L)*110mm(W)*17mm(H)
产品介绍：LKD3506/J采用12V3A电源，板载2路USB2.0，1路 USB2.0-OTG接口，板载1个 mini-PCIe 接口，可以外接4G模块；1路MIPI-DSI显示输出；另外，LKD3506/J还支持双频 WIFI6、BT5.0，2路100M 以太网、UART、RS485、CAN等常用通讯模块接口。
| Part reference | Part Name | Part Specifications | Part Description |
| J1 | SPK | PH1.25mm 2pin wafer | audio Output for Speaker |
| J2 | GPIO | PH2.0mm 2x15pin header | DSMC and GPIO signals |
| J3 | MIPI-DSI | 42pin 0.5pitch FPC Socket | MIPI DPHY DSI |
| J4 | TP | PH2.0mm 6pin wafer | touch panel |
| J5 | USB2.0-OTG | PH2.0mm 2pin header | USB OTG |
| J6 | Ant | I-PXE | WL_BT_ANT |
| J7 | Reset_key | push-button | Key for system Reset or other function |
| J8 | Update_key | push-button | Key for system update or other function |
| J9 | USB2.0 | Type-A USB2.0 | USB2.0 for external devices |
| J10 | RTC Battery | Diameter: 11.6mm, Height: 2.0mm | RTC battery power input 3.0V |
| J11 | USB2.0 | Type-A USB2.0 | USB2.0 for external devices |
| J12 | RJ45 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J13 | UART | PH2.0mm 4pin header | Uart signals |
| J14 | mini-PCIe | Mini-PCIe 52pin socket | For 2G/3G/4G LTE module used |
| J15 | FAN | PH1.25mm 2pin wafer | FAN |
| J16 | DC-IN | DC 5.5*2.1mm | Main power supply, DC12V – 3A |
| J17 | Micro-SIM | Push-Push SIM socket | SIM Card |
| J18 | MIC-IN1/2 | PH1.25mm 2pin wafer | Micphone In |
| J19 | RS485 | 3.5mm 4pin wafer | RS485BUS signals |
| J20 | CAN | 3.5mm 4pin wafer | CANBUS signals |
| J21 | POWER LED | Red and Green LEDs | Power status indicate |
| J22 | Work LED | Green led *2 | Work Indicator |
| J23 | UART-Debug | PH2.0mm 4pin header | Uart signals |
