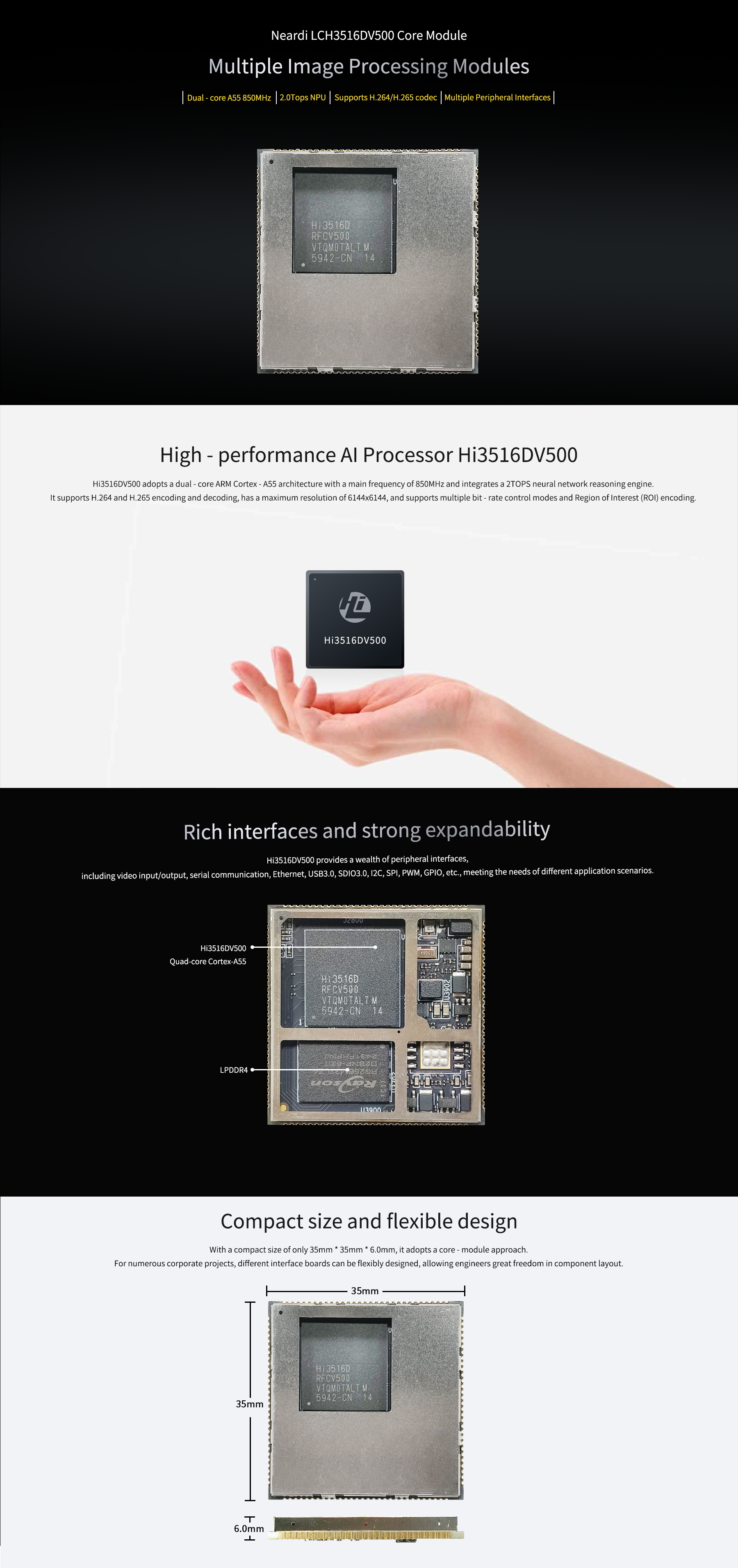

1

RGMII_RXD1

2

RGMII_RXCK

3

RGMII_RXD0

4

RGMII_RXD2

5

RGMII_RXDV

6

RGMII_RXD3

7

GND

8

RGMII_TXEN/BOOT_PAR_SEL3

9

RGMII_TXD0/BOOT_SEL1

10

RGMII_TXCKOUT

11

RGMII_TXD1/SFC_EMMC_BOOT_MODE

12

RGMII_TXD2

13

RGMII_TXD3

14

GND

15

EPHY_CLK/BOOT_PAR_SEL1

16

PWM__3V3_TEST

17

MUTE

18

GND

19

PWR_WAKEUP0

20

UART1_RTSN

21

PWR_EN1

22

UART1_CTSN

23

IR_CUT_0_CONTROL2

24

GND

25

MDCK/BOOT_PAR_SEL2

26

GND

27

GND

28

SYS_RSTN

29

GND

30

GND

31

GND

32

UART1_RXD

33

GND

34

UART1_TXD

35

GND

36

IR_CUT_0_CONTROL1

37

GND

38

JTAG_TRSTN

39

MDIO

40

JTAG_TDI

41

EPHY_RSTN

42

JTAG_TDO

43

DVDD3318_SDIO_VOUT

44

AVDD3_BAT

45

GND

46

UART0_TXD

47

UART0_RXD

48

GND

49

GND

50

UPDATE_MODE_N/T_RSTN

51

USB_OVRCUR

52

GND

53

SENSOR1_HS/BOOT_PAR_SEL0/T_SD2

54

GND

55

SENSOR1_CLK/FAST_BOOT_MODE

56

GND

57

SENSOR1_VS/BOOT_SEL0/T_SD3

58

GND

59

SENSOR1_RSTN

60

GND

61

GND

62

GND

63

3V3_SOC

64

GND

65

3V3_SOC

66

EMMC_DATA2

67

3V3_SOC

68

EMMC_CMD

69

GND

70

EMMC_CLK

71

EMMC_DS

72

EMMC_RST_N

73

EMMC_DATA0

74

EMMC_DATA1

75

EMMC_DATA4

76

EMMC_DATA3

77

GND

78

EMMC_DATA7

79

SPI1_CSN/I2C6_SDA/VI_HS

80

EMMC_DATA6

81

SPI1_SDI/I2C6_SCL/VI_VS

82

EMMC_DATA5

83

SPI1_SDO/I2C5_SDA/T_SD3

84

SPI1_SCLK/I2C5_SCL/T_SD2

85

GND

86

SENSOR3_CLK/VI_D3/T_PS

87

SPI0_SDO/I2C4_SDA/VI_D2/T_HS

88

SPI0_CLK/I2C4_SCL/VI_CLK/T_CLK

89

SPI0_CSN0/I2C3_SDA/VI_D1/T_DO6

90

SPI0_SDI/I2C3_SCL/VI_D0/T_DO7

91

GND

92

MIPI_RX1_D0P

93

MIPI_RX1_D0N

94

MIPI_RX1_CK0P

95

MIPI_RX1_CK0N

96

MIPI_RX1_D2N

97

MIPI_RX1_D2P

98

MIPI_RX1_D1N

99

I2C7_SDA

100

MIPI_RX1_D1P

101

I2C7_SCL

102

MIPI_RX1_CK1N

103

GPIO10_7

104

MIPI_RX1_CK1P

105

MIPI_RX1_D3N

106

GND

107

MIPI_RX1_D3P

108

MIPI_RX0_D0N/VI_D10

109

GND

110

MIPI_RX0_D0P/VI_D11

111

USB_PWREN

112

MIPI_RX0_D2N/VI_VS/VI_D14

113

SENSOR0_CLK/VI_D9/T_MCK

114

MIPI_RX0_D2P/VI_HS/VI_D15

115

SENSOR0_HS/VI_D7/T_VS

116

MIPI_RX0_CK0P/VI_D13

117

SENSOR0_RSTN/VI_D8/T_SD0

118

MIPI_RX0_CK0N/VI_D12

119

SENSOR0_VS/VI_D6/T_SD1

120

MIPI_RX0_CK1P/VI_D5/T_DO0

121

AC_MICBIAS

122

MIPI_RX0_CK1N/VI_D4/T_DO3

123

SYS_RSTN_OUT/WDG_RSTN

124

MIPI_RX0_D3P/VI_D3/T_DO1

125

SENSOR2_CLK

126

MIPI_RX0_D3N/VI_D2/T_DO2

127

USB_VBUS/VO_RESET

128

MIPI_RX0_D1P/VI_D1/T_DO4

129

MIPI_RX0_D1N/VI_D0/T_DO5

130

GND

131

5V0

132

5V0

133

5V0

134

GND

135

PWR_BUTTON

136

USB_DP

137

USB_DM

138

USB3_TXM0

139

USB3_TXP0

140

USB3_RXP0

141

USB3_RXM0

142

AC_INL0/P

143

AC_INL0/N

144

AC_OUTL

145

AC_INR1/P

146

AC_OUTR

147

AC_INR1/N

148

SDIO0_CARD_POWER_EN_N

149

GND

150

SDIO0_CCMD

151

SDIO1_CLK/BT1120_CLK/RGB_D17

152

SDIO0_CDATA0

153

SDIO1_D3/BT1120_D9/RGB_D16

154

SDIO0_CARD_DETECT

155

SDIO1_CMD/BT1120_D8

156

SDIO0_CDATA1

157

SDIO1_D1/BT1120_D10/RGB_D14

158

SDIO0_CDATA3

159

SDIO1_D0/BT1120_D11/RGB_D13

160

SDIO0_CCLK_OUT

161

SDIO1_D2/BT1120_D12/RGB_D15

162

SDIO0_CDATA2

163

VO_BT1120_DATA13

164

VO_BT1120_DATA6

165

VO_BT1120_DATA7

166

VO_BT1120_DATA14

167

VO_BT1120_DATA4

168

VO_BT1120_DATA5

169

VO_BT1120_DATA2

170

VO_BT1120_DATA3

171

VO_BT1120_DATA0

172

VO_BT1120_DATA1

173

GND

174

GND

175

GND

176

GND

177

VO_BT1120_DATA15

178

JTAG_TCK

179

POR_ENABLE

180

JTAG_TMS
