SOC：Hi3403V100

Storage：4+32GB/8+64GB

Size：50mm(L)*50mm(W)*4.5mm(H)

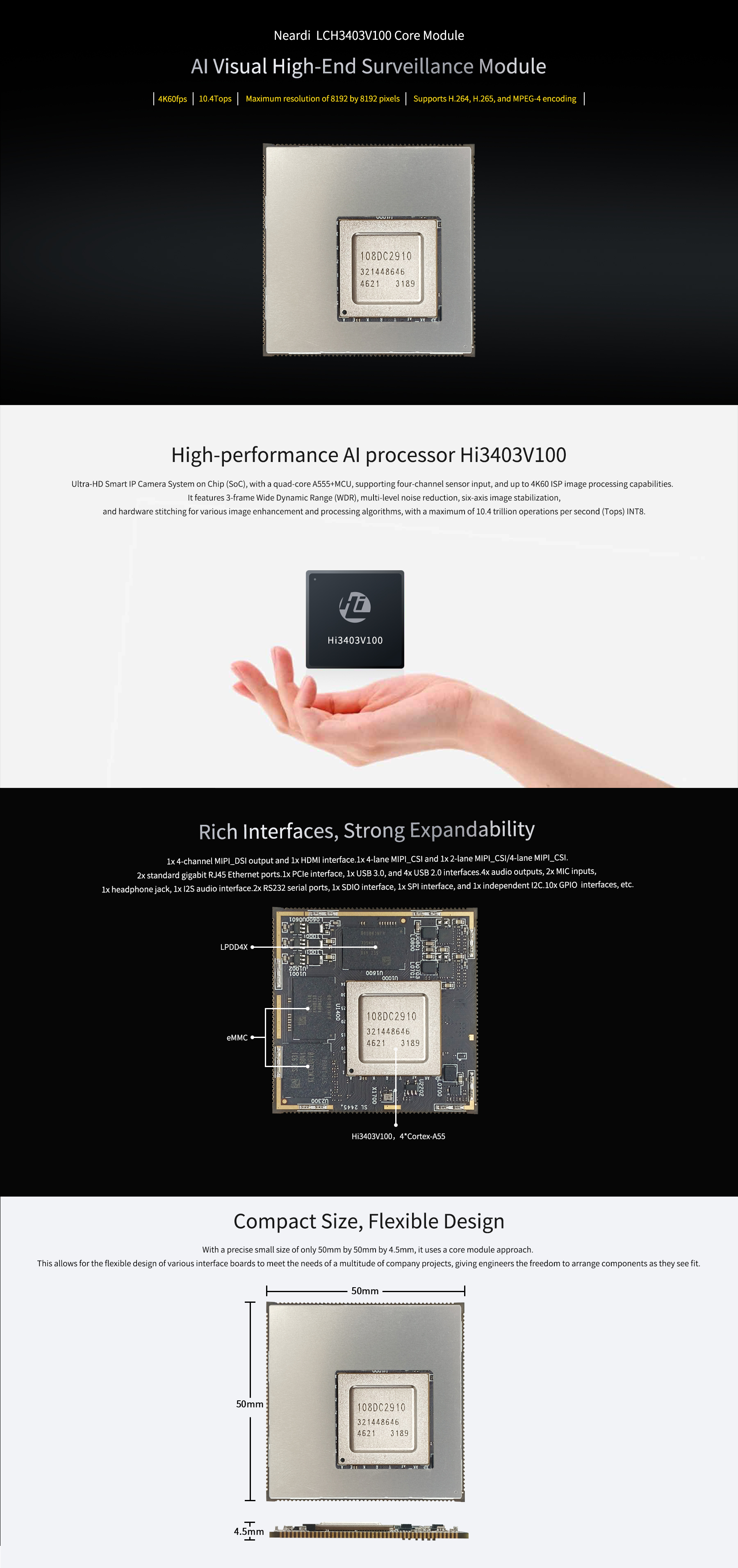

Product：The LCB3403V100 includes sections for the CPU, DDR, eMMC, and PMU. The DDR uses mainstream market models LPDDR4/LPDDR4X, with lower power consumption and faster frequencies, available in 4GB/8GB configurations; the eMMC adopts the high-speed eMMC 5.1 standard, available in 32GB/64GB options. It boasts a rich set of peripheral interfaces, including 1 four-channel MIPI_DSI output and 1 HDMI interface, 1 four-lane MIPI_CSI and 1 two-lane MIPI_CSI/four-lane MIPI_CSI, 2 standard Gigabit RJ45 Ethernet ports, 1 PCIe, 1 USB3.0 and 4 USB2.0, 4 speaker channels, 2 MICs, 1 headphone jack, 1 I2S audio interface, 2 RS232 serial ports, 1 SDIO interface, 1 SPI, and 1 independent I2C, as well as 10 GPIOs, meeting a variety of peripheral expansion needs.
