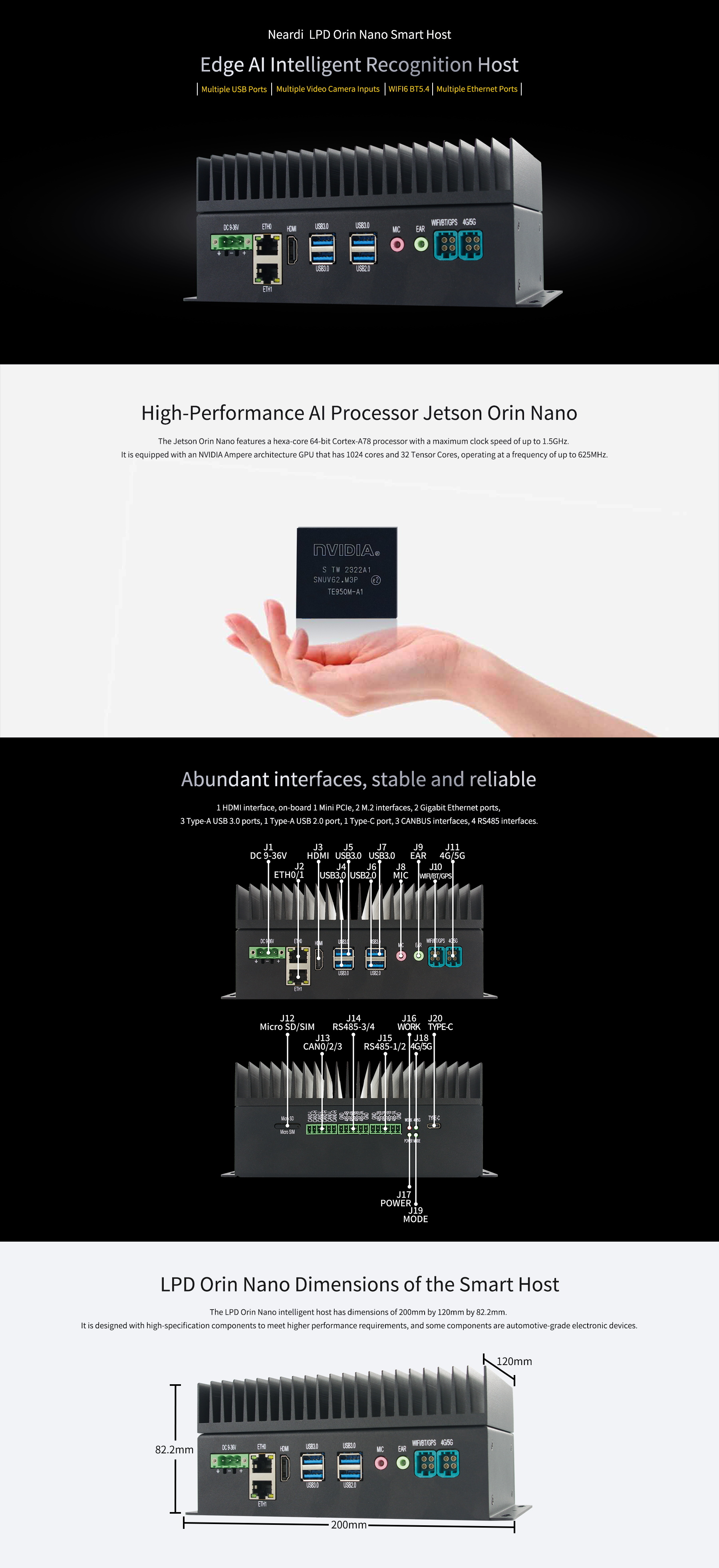

LPD Orin Nano
SOC：Jetson Orin Nano
Storage：Orin Nano 4GB / 8GB
Size：200mm(L)*120mm(W)*82.2mm(H)
Product：The LPD Orin Nano features a variety of interfaces, providing a wide voltage input of 9~90V/3A, 3 USB 3.0 ports, and 1 USB 2.0 interface for flexible data transfer and device expansion, along with 1 TYPE-C Recovery interface. It has 2 Gigabit Ethernet interfaces for stable network connections. There is 1 HDMI interface supporting 4K60fps video output, 1 MIC, and 1 Line output to meet audio capture and playback needs. The board has 1 mini-PCIe interface and 2 M.2 interfaces for expanding connections to 4G/5G modules and external NVMe protocol SSDs. It also has an onboard WIFI module supporting WIFI6 and BT5.4, offering high-speed wireless connections. The board supports 3 CANBUS and 4 RS485 communication module interfaces.
Part reference | Part Name | Part Specifications | Port Description |
J1 | Power Switch | Push-button switch | Key for system power |
J2 | DC 9-36V | KF2EDGRM 5.08mm pitch 3pin | Main power supply, DC9-36V |
J3 | ETH0/1 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
J4 | HDMI | Type-A HDMI | HDMI2.0 Out |
J5 | USB3.0 | Type-A USB3.0 | USB3.0 |
J6 | USB3.0 | Type-A USB3.0 | USB3.0 |
J7 | USB2.0 | Type-A USB2.0 | USB2.0 |
J8 | USB3.0 | Type-A USB3.0 | USB3.0 |
J9 | MIC | φ3.5mm 3-L Jack | Micphone In |
J10 | LINE | φ3.5mm 3-L Jack | L/R audio out |
J11 | WIFI/GPS ANT | Fakra 4pin | Antenna1 for WiFi/BT/GPS |
J12 | 5G ANT | Fakra 4pin | Antenna1 for 5G |
J13 | MIcro SD/SIM | Push-Push SD and SIM socket | SD and SIM Card |
J14 | CAN 0/2/3 | KF2EDGR 3.5mm 6pin wafer | CAN signals |
J15 | RS485 3/4 | KF2EDGR 3.5mm 6pin wafer | RS485 signals |
J16 | RS485 1/2 | KF2EDGR 3.5mm 6pin wafer | RS485 signals |
J17 | work LED | Red Led | Work status and 3G/4G Module Status Indicator |
J18 | Power LED | Green Led | Power status indicate |
J19 | 4G/5G LED | Green LED | 4G/5G Module Status Indicator |
J20 | Mode LED | Green LED | Function definition indicator |
J21 | USB TYPE-C | Type-C Socket | Type-C with USB3.0 or Display port / Recovery Port |
J22 | GMSL Camera reserved | FAKRA,R/A PCB-3 Z型 | GMSL camera interface reserved |
J23 | GMSL OUT reserved | FAKRA,R/A PCB-3 Z型 | GMSL output interface reserved |
