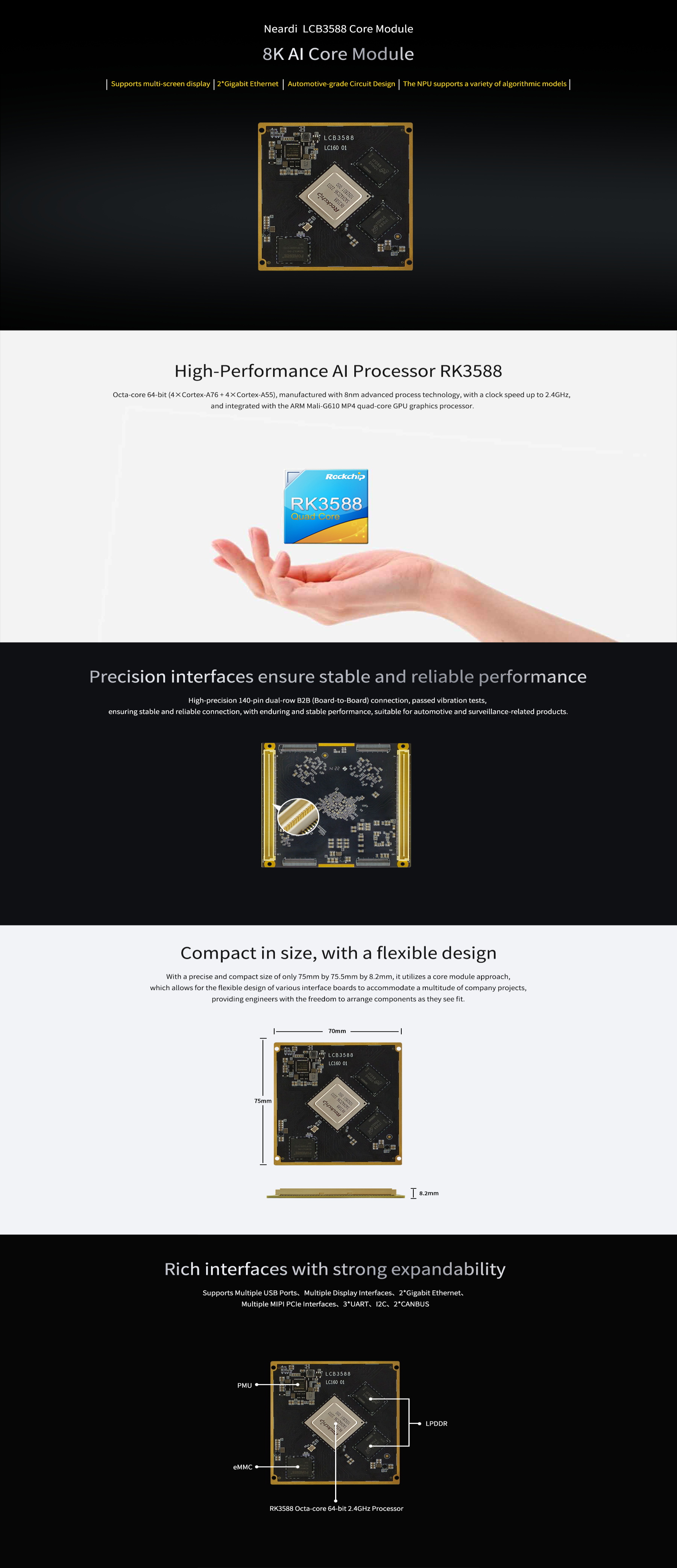

LCB3588/J/M

SOC :RK3588

Storage :4+32 GB / 8+64 GB/ 16+128 GB

Size :75mm(L)*70mm(W)*8.2mm(H)

Product :The connection between the core module and the chassis uses a combination of two 0.8mm pitch 140Pin board-to-board connectors and four 0.5mm pitch 30Pin FPC connectors, and is secured by four M2 screws; it really leads out all of the external pin signals of the RK3588, and at the same time takes into account the needs of high reliability, low cost, and high flexibility.

Buying

Product
Downloads
Brochure
WIKI

Basic Parameters
SOC	RK3588, an 8nm process; 8-core 64-bit processor architecture (4xA76 + 4xA55).
GPU	ARM Mali-G610 MC4 GPU; supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2.
GPU	OpenCL 1.1/1.23/2.0; high-performance 2D graphics acceleration module.
NPU	6TOPS computational power; 3-core architecture; supports int4/int8/int16/FP16/BF16/TF32.
VPU	Supports video decoding for H.265/H.264/AV1/VP9/AVS2, with a maximum support of 8K at 60 frames per second (FPS).
VPU	Supports video encoding for H.264/H.265, with a maximum support of 8K at 30 FPS.
DDR	LPDDR4/LPDDR4X memory, with options for 4GB/8GB/16GB.
eMMC	eMMC 5.1 storage, with options for 32GB/64GB/128GB.
PMU	RK806
OS	Android / Ubuntu / Buildroot / Debian
Hardware Specifications
Video Input interface	MIPI interface :
	2 * MIPI(4 lanes) + 4 * MIPI(2 lanes), totally support 6 cameras input;
	3 * MIPI(4 lanes) + 2 * MIPI(2 lanes), totally support 5 cameras input;
	4 * MIPI(4 lanes) , totally support 4 cameras input;
	DVP interface:
	8/10/12/16-bit standard DVP interface, up to 150MHz input data;
	HDMI RX interface:
	HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4;
Video Output interface	1 * HDMI2.1 up to 8K@60fps;
	1 * HDMI2.0 up to 4K@60fps;
	2 * MIPI-DSI up to 4K@60fps;
	2 * DP1.4 up to 8K@30fps;
	2 * eDP1.3 up to 4K@60Hz;
	1 * BT.1120 up to 1080@60fps;
Image Signal Processor	8064*6048@15 dual ISP;
	6528*4898@30 dual ISP;
	4672*3504@30 single ISP;
Video Output Processor	Video Port0 up to 7680*4320@60Hz;
Video Output Processor	Video Port1 up to 4096*4320@60Hz;
Other Specifications
Operating temperature	Enterprise level: -20°C to 70°C
Operating temperature	Industrial level: -40°C to 85°C
PCB interface	B2B(280 Pin 0.8mm Pitch) + FPC(4 * 30 Pin 0.5mm Pitch)
PCB layers	10 layers
PCB size	L* W H(mm)：75 70 * 8.2（PCB thickness 1.6mm）
